• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1923 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 263450

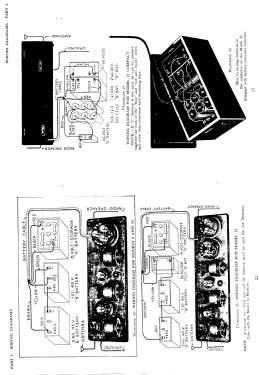

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• TRF without regeneration

• Power type and voltage
• Storage and/or dry batteries

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Generic AK Model 10 breeadboard page - Atwater Kent Mfg. Co.;

• Shape
• Tablemodel, with any shape - general.

• Notes

• These are all Model 10 AK Breadboards. Check each page to find your model.

  4340 Model 10 (non-Radiodyne) Binding Post Model

  4340 Model 10 (non-Radiodyne) Non-Binding Post Model (black cans)

  4340 Model 10 (non-Radiodyne) Non-Binding Post Model (green cans)

  4340 Model 10 Radiodyne green

  4340 Model 10 Radiodyne plain gray

  4340 Model 10 Radiodyne (?) black

  4340 Radiodyne (Metal on/off switch) (Early TA and Binding Posts)

  4550 Model 10A brown/w.cable

  4560 or 4550 Model 10B brown/w.cable

  4560 Model 10A black/w.cable

  4560 Model 10B black/w.cable

  4590 Model 10 Pooley board

• Literature/Schematics (2)
• Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 102)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 507 models, 330 with images and 332 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Atwater Kent Mfg. Co.; Philadelphia, USA
