• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1923

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33189

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UV201A UV201A UV201A or UV200 UV201A UV201A

• Main principle
• TRF without regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

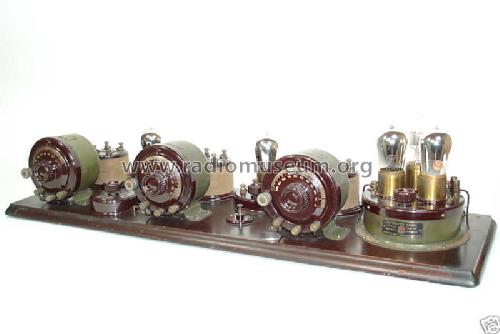

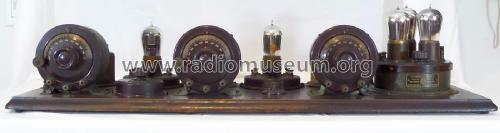

• Model: 4340 Model 10 Radiodyne [green] - Atwater Kent Mfg. Co.;

• Dimensions (WHD)
• 31 x 6 x 10 inch / 787 x 152 x 254 mm

• Notes

• Breadboard; three dials; all 3 coils flat mounted;

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Radio Manufacturers of the 1920s, Vol 1
