• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33200

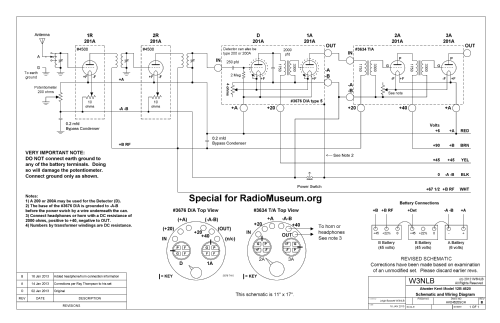

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UV201A UV201A UV201A or UV200 UV201A UV201A UV201A

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

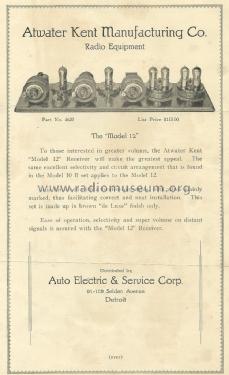

• Model: 4620 Model 12 [brown, 36 inches] - Atwater Kent Mfg. Co.;

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 36 x 0.8 x 10 inch / 914 x 20 x 254 mm

• Notes

• Breadboard; 3 dials; orthogonally mounted coils; Last unit has a small knob. No means to cut out the last audio stage..

• Price in first year of sale
• 105.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Radio Manufacturers of the 1920s, Vol 1

• Literature/Schematics (1)
• A.Atwater Kent, The Man, 2002
