- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Atwater Kent (Brand), C & A Odlin & Co. Ltd; Wellington
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 347599
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 264 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org

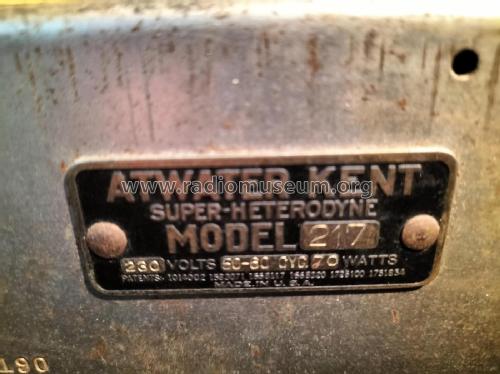

- Model: 217 [230V] - Atwater Kent Brand, C & A
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 425 x 348 x 258 mm / 16.7 x 13.7 x 10.2 inch
- Notes
-
7 valve superhet with RF stage mantel model receiver. MW and LW bands.
Made in the USA. Export version of the 110 volt Model 217.
- Mentioned in
- -- Original prospect or advert (Waikato Times 29 March 1934 Page 3)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
