• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Atwater Kent (Brand), C & A Odlin & Co. Ltd; Wellington

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 347601

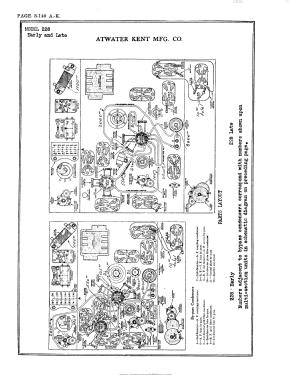

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 35 35 27 35 24 27 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 130 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8.5 inch = 21.6 cm

• Material
• Wooden case

• from Radiomuseum.org

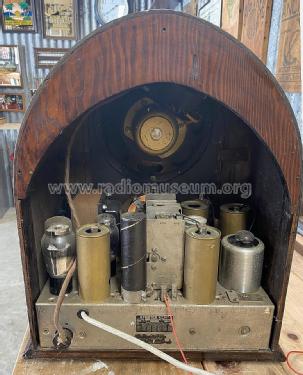

• Model: 228 [220V] - Atwater Kent Brand, C & A

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 16 x 19 x 10 inch / 406 x 483 x 254 mm

• Notes

• 8 valve broadcast (MW) superhet with RF stage mantel model receiver.

  Made in the USA. Export version of the 110 volt Model 228.

• Mentioned in
• -- Original prospect or advert (Hawkes Bay Tribune 11 August 1932 Page 10)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 3 = 1933 and before

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.

• Other Models

• Here you find 17 models, 16 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Atwater Kent (Brand), C & A Odlin & Co. Ltd; Wellington
