• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33225

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 35 35 27 35 24 27 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 130 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

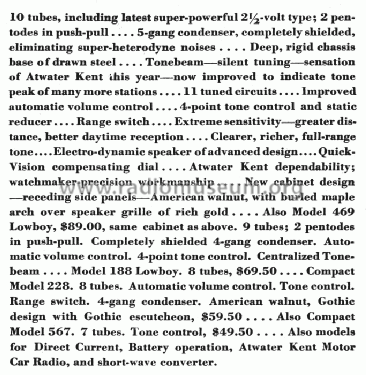

• Model: 228F AC Chassis [for 25 Hz mains] - Atwater Kent Mfg. Co.;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• for 25 Hz mains.
  For Cabinet 228; Photos not here, only at Cabinet 228 !

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before
