• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18429

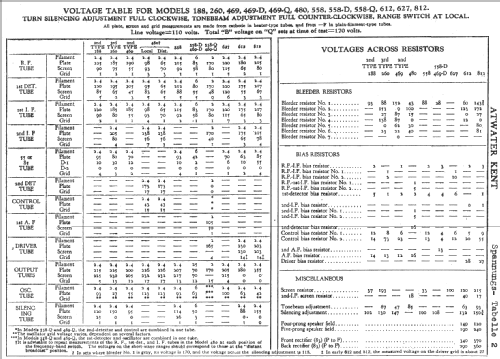

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 58 58 56 58 58 56 56 47 47 80 Tonebeam

• Main principle
• Superhet with RF-stage; ZF/IF 130 kHz

• Tuned circuits
• 11 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

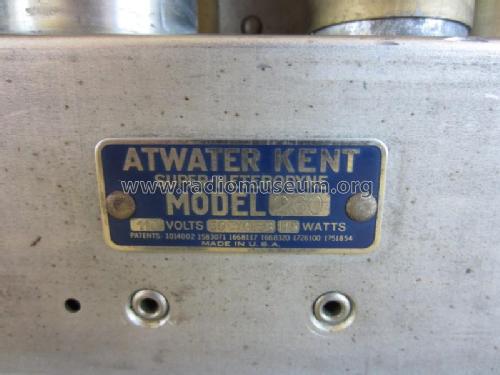

• Model: 260 Tonebeam Lowboy [6 legs] - Atwater Kent Mfg. Co.;

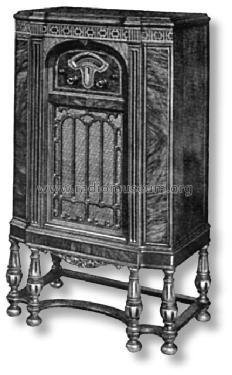

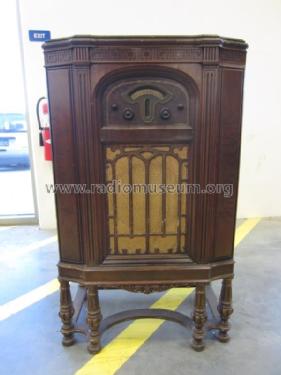

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• 6 legged stretcher base;
  6 chassis versions (Type 1, 2, and 3; with or without suffix F).
  Tonebeam is the neon tuning indicator tube.

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition) (Thali)
