• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33240

Click on the schematic thumbnail to request the schematic as a free document.

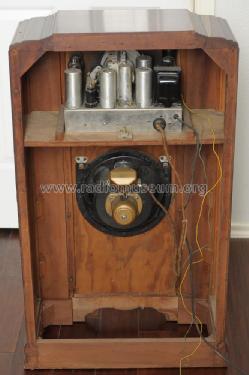

• Number of Tubes
• 7

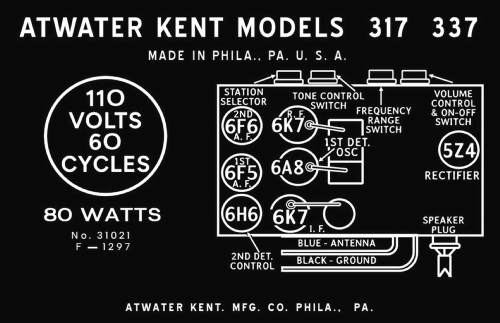

• Valves / Tubes
• 6K7 6A8 6K7 6H6 6F5 6F6 5Z4

• Main principle
• Superhet with RF-stage; ZF/IF 472 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 317 - Atwater Kent Mfg. Co.;

• Shape
• Console with any shape - in general

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• The Complete Price Guide to Antique Radios: Pre-War Consoles

• Literature/Schematics (1)
• The Radio Collector's Directory and Price Guide 1921 - 1965
