3975 (Model 4) Breadboard Set

• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1922

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74586

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UV201A or UV200 UV201A UV201A

• Main principle
• TRF without regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: 3975 Breadboard Set - Atwater Kent Mfg. Co.;

• Shape
• Miscellaneous shapes - described under notes.

• Notes

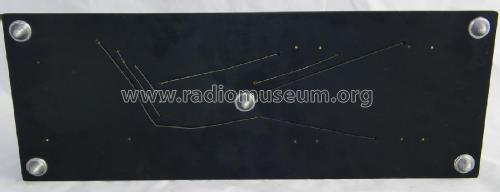

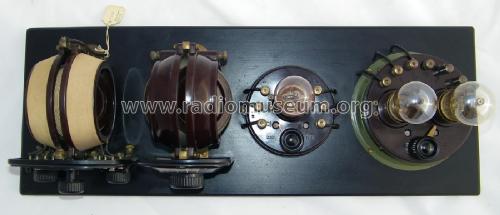

• Breadboard consisting of: Variocoupler 3731, Variometer 3714, Det.3902, Amp.3654, and board 3975;

• Source of data
• A.Atwater Kent, The Man, 2002

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 507 models, 330 with images and 332 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Atwater Kent Mfg. Co.; Philadelphia, USA
