- Country
- United States of America (USA)
- Manufacturer / Brand
- Atwater Kent Mfg. Co.; Philadelphia, USA
- Year
- 1936 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 33271

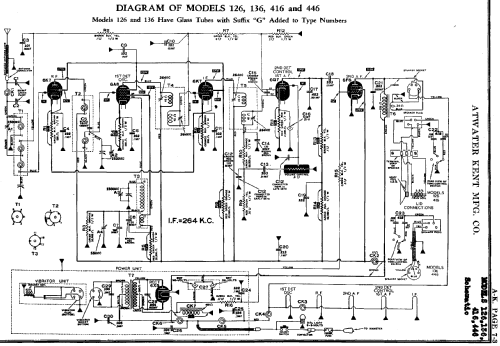

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- Vibrator
- Main principle
- Superhet with RF-stage; ZF/IF 264 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / =6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: 416 - Atwater Kent Mfg. Co.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 7 x 10 x 6.875 inch / 178 x 254 x 175 mm
- Notes
-

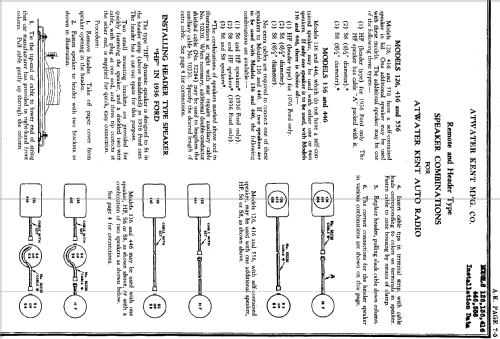

Radio is housed in metal box designed to be mounted under dashboard of auto. Radio has remote control to dial assembly mounted within the auto dashboard. Speaker is internal.
This model has metal tubes. Model 126 is identical, but has glass tubes.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
