435 Tombstone
Atwater Kent Mfg. Co.; Philadelphia, USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Atwater Kent Mfg. Co.; Philadelphia, USA
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 260466
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 435 [Tombstone] - Atwater Kent Mfg. Co.;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Literature/Schematics (2)
- Table Top Radios Vol. 4 Stein 2003 (page 46.)
- Literature/Schematics (3)
- Rider's Perpetual, Volume 7 = 1936 and before (Riders page (AK) 7-37)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 507 models, 330 with images and 332 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Atwater Kent Mfg. Co.; Philadelphia, USA
Forum contributions about this model: Atwater Kent Mfg. Co: 435
Threads: 1 | Posts: 1

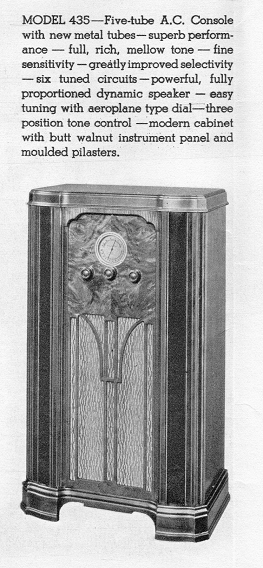

The Atwater Kent model 435 was only available in a console version. The entry in Mark Stein's book is in error. The compact (tombstone) version of the model 435 is the model 225. However, the photo in Mark Stein's book is the same cabinet as the Atwater Kent model 225. Attached, are scans of the September 1935 sales brochure with the console and compact versions.
Attachments
Dennis Craft, 10.Oct.18
