447

• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18440

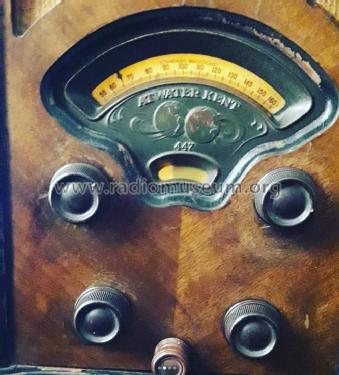

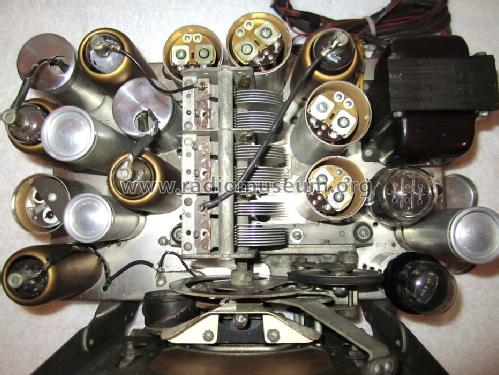

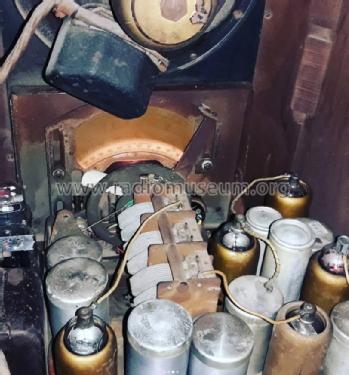

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 58 2A7 58 58 2A6 2A5 80

• Main principle
• Superhet with RF-stage; ZF/IF 472 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3.3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 447 - Atwater Kent Mfg. Co.;

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 16 x 22.5 x 11.25 inch / 406 x 572 x 286 mm

• Notes
• 4 bands: BC, Police, 2xSW;

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Table Top Radios Vol. 1 Stein 98

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Cathedral & Tombstone Radios (page 59.)
