- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Atwater Kent (Brand), C & A Odlin & Co. Ltd; Wellington
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 350986
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 264 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 50Hz, 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11 inch = 27.9 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 475 - Atwater Kent Brand, C & A
- Shape
- Console with any shape - in general
- Notes
-
Atwater Kent Console Model 475
5-Valve All Wave model, with many advanced features, including pick-up attachment, uniform full-tone quality, greater selectivity, new two-speed tuning, 11in. speaker. Extraordinary volume and clarity on both broadcast and short wave. Cabinet with a sloping top. CASH PRICE £28/10/-.
See also US version Model 475-B and NZ tombstone version Model 735.
Made in USA
- Price in first year of sale
- 28.50 NZ £
- Mentioned in
- -- Original prospect or advert (Evening Post 26 March 1936 Page 28)
- Literature/Schematics (1)

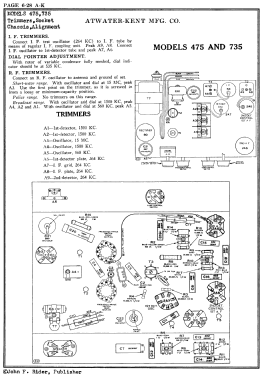

- Rider's Perpetual, Volume 6 = 1935 and before (Pages 6-27 & 6-28)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
