• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33298

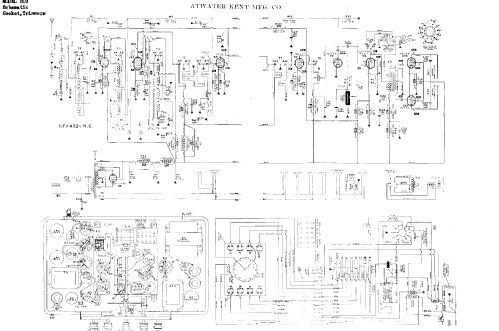

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 58 2A7 58 58 56 55 2A5 2A5 80

• Main principle
• Superhet with RF-stage; ZF/IF 472 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11 inch = 27.9 cm

• Material
• Wooden case

• from Radiomuseum.org

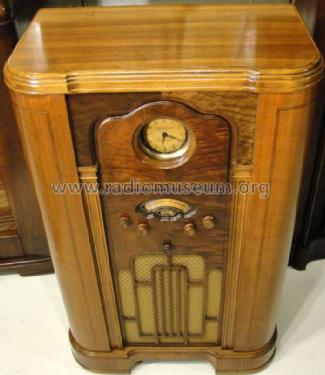

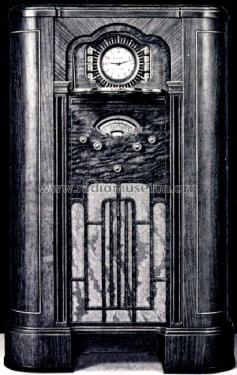

• Model: 509-W Ch= 509 - Atwater Kent Mfg. Co.;

• Shape
• Console with any shape - in general

• Notes

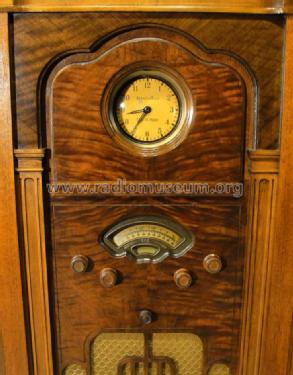

• Tuning 540 to 1600 kc and 5.5 to 15.5 mc. With an electric clock.

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Pre-War Consoles

• Literature/Schematics (3)
• Atwater Kent Folder No. 421 for 1935.
