• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33299

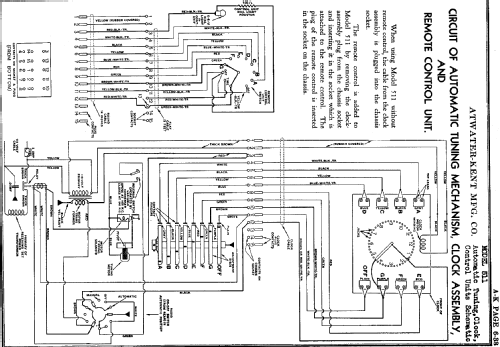

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 58 2A7 58 58 2B7 56 56 56 2A3 2A3 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 472 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 15 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 511-W Ch= 511 - Atwater Kent Mfg. Co.;

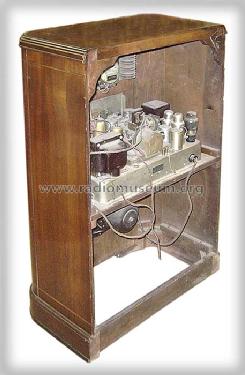

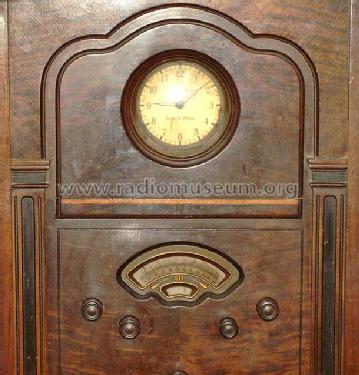

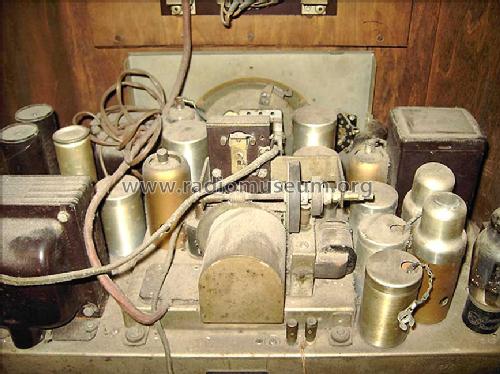

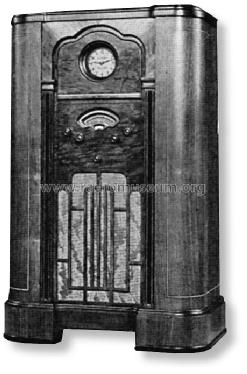

• Shape
• Console with any shape - in general

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

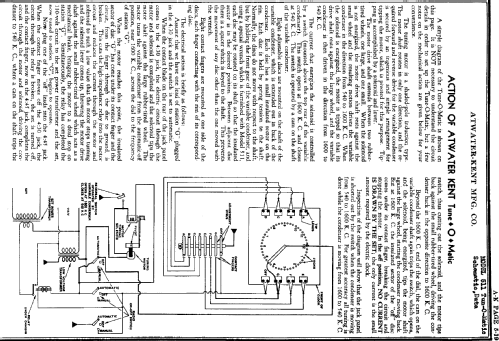

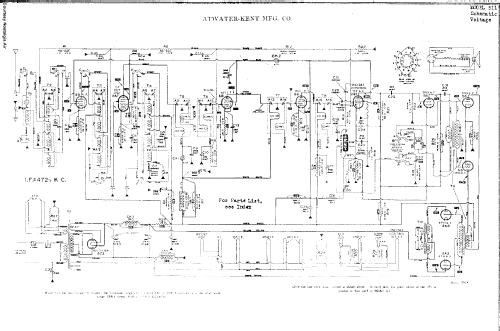

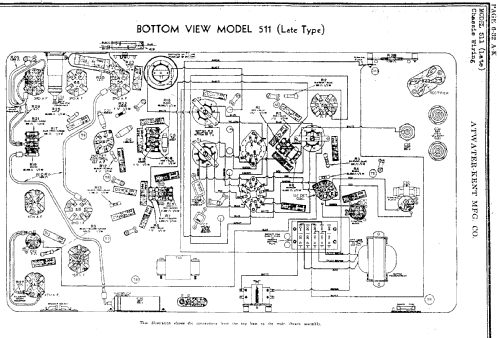

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

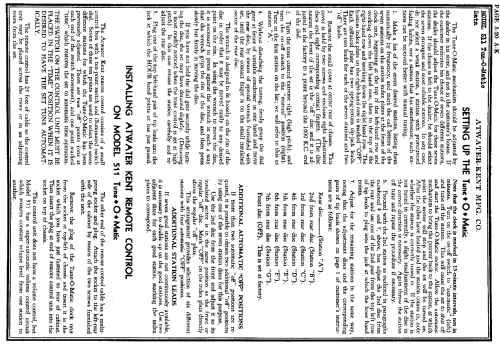

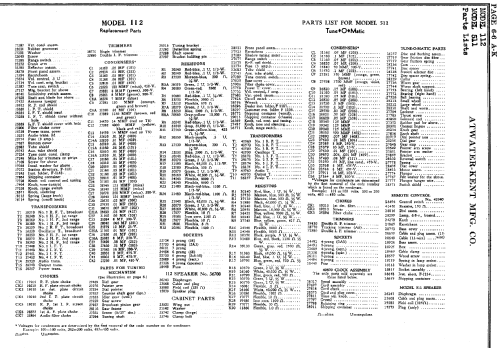

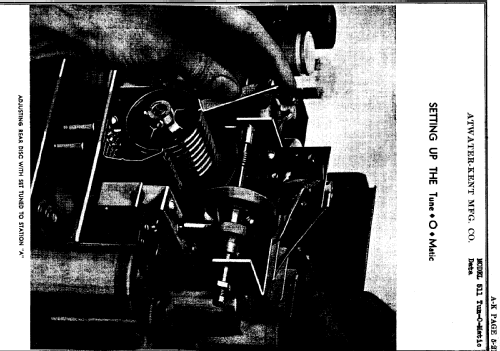

• Literature/Schematics (1)
• Pre-War Consoles
