• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74662

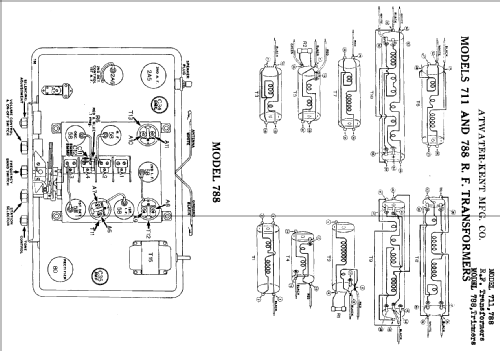

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 58 58 58 58 58 55 56 56 2A3 2A3 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 472 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

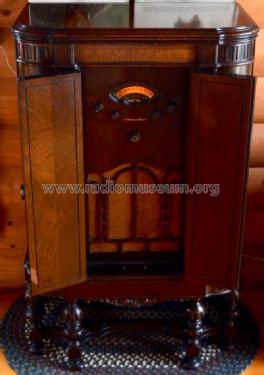

• Model: 711T [Console w/doors] - Atwater Kent Mfg. Co.;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 27 x 44.25 x 17.5 inch / 686 x 1124 x 445 mm

• Notes
• This model 711T cabinet with its doors has the same chassis as 711R (modern) and 711J (lowboy on 6 short legs). According to "Slusser", the mentioned models are from 1933. For being able to tune in stations well, the model uses a "shadow tuning indicator" or "shadow indicator" (often called Shadowgraph as principle or brand) of 1200 ohms.

• Price in first year of sale
• 150.00 USD

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (October 1933 issue, page 19)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
