82

• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33376

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 35 35 27 24 24 47 80

• Main principle
• Superheterodyne (common); ZF/IF 130 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

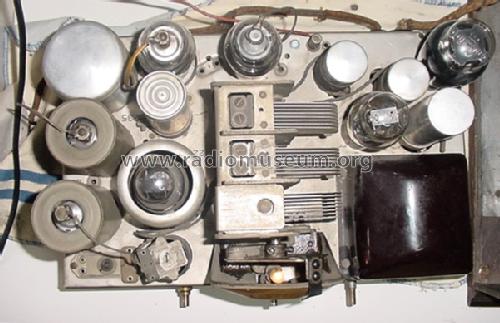

• Model: 82 - Atwater Kent Mfg. Co.;

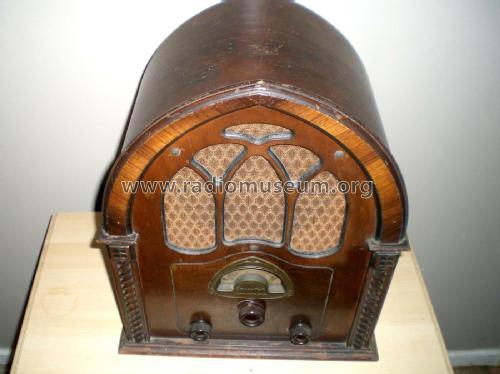

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 16 x 19 x 10 inch / 406 x 483 x 254 mm

• Notes

• Power consumption 80W. See also the similar Atwater Kent model 82-Q for battery operation or model 82-D without automatic volume control.

• Net weight (2.2 lb = 1 kg)
• 18.1 kg / 39 lb 13.9 oz (39.868 lb)

• Price in first year of sale
• 69.80 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Machine Age to Jet Age II (page 69.)

• Literature/Schematics (1)
• Cathedral & Tombstone Radios (page 56.)

• Literature/Schematics (3)

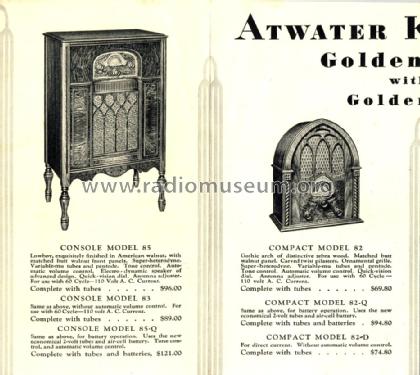

• Atwater Kent Folder No. 103, 7-1931
