• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74770

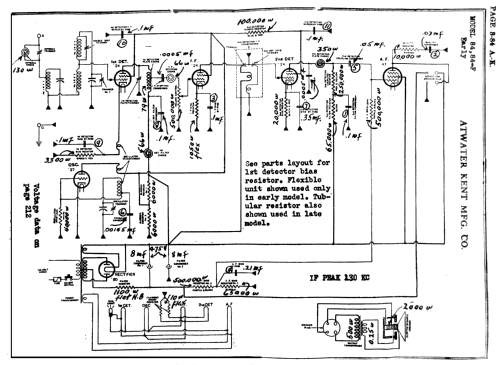

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 24 27 24 24 47 80

• Main principle
• Superheterodyne (common); ZF/IF 130 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 84 Grandfather Clock - Atwater Kent Mfg. Co.;

• Shape
• Grandfather Clock with Radio.

• Notes

• Grandfather Clock Radio;
  Slusser: "Collectors Guide to Antique Radios" 7th edition (2008) gives a collector value of 630 - 840 $. See the probably earlier model here.

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
