85Q 85-Q 1st and 2nd type
Atwater Kent Mfg. Co.; Philadelphia, USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Atwater Kent Mfg. Co.; Philadelphia, USA
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33382

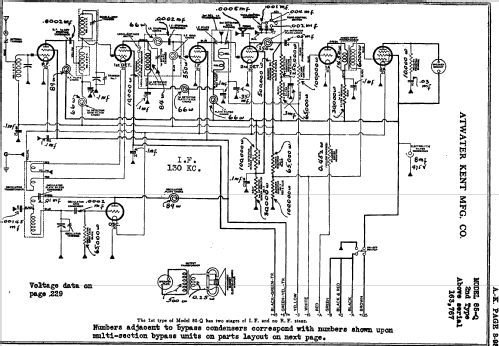

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 130 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 85Q 85-Q [1st and 2nd type] - Atwater Kent Mfg. Co.;

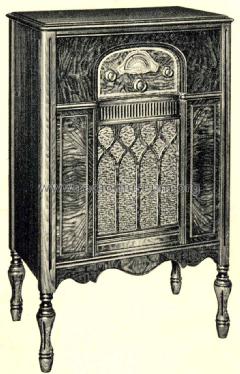

- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
1st type below, 2nd type above Ser.Nr.163767.
See also the similar Atwater Kent model 85, with automatic volume control or model 83 without automatic volume control.
- Price in first year of sale
- 121.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (3)
- Atwater Kent Folder No. 103, 7-1931
