• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18435

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 35 35 27 35 24 27 47 80 Tonebeam

• Main principle
• Superhet with RF-stage; ZF/IF 130 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: 96 Tonebeam Chassis - Atwater Kent Mfg. Co.;

• Shape
• Chassis only or for «building in»

• Notes
• Used in Highboy or Lowboy consoles.

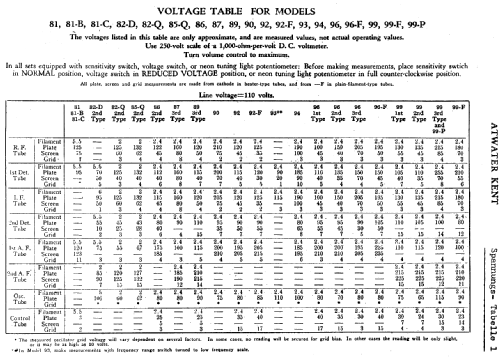

  Tonebeam = Neon tuning indicator. Riders includes four chassis versions which differ in minor circuitry / component changes:
  Model 96, 1st Type below serial 7,289,385
  Model 96, 2nd Type serial 7,289,385 to 7,291,674
  Model 96, 3rd Type above serial 7,291,674
  Model 96F for 25 Hz mains.

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition) (Thali)
