• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 265866

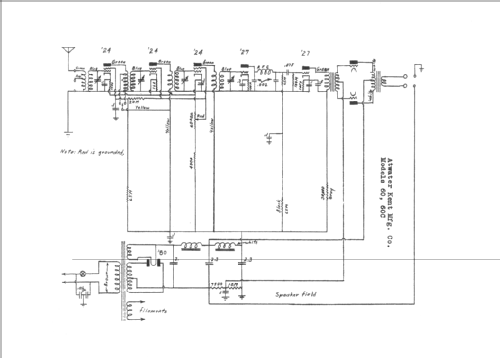

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• UY224 or C324 UY224 or C324 UY224 or C324 UY227 or C327 UY227 or C327 UX245 or CX345 UX245 or CX345 UX280 or CX380

• Main principle
• TRF without regeneration; Screengrid 1926-1935

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Baby Grand Piano Ch= 60C - Atwater Kent Mfg. Co.;

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• External source of data
• Information courtesy of guest Anna Samuelian

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
