• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164071

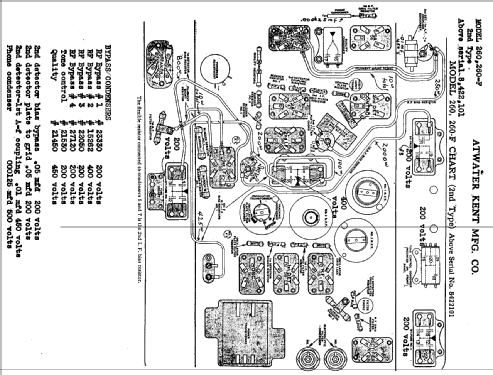

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 58 58 56 58 58 56 56 47 47 80 Tonebeam

• Main principle
• Superhet with RF-stage; ZF/IF 130 kHz

• Tuned circuits
• 11 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Chassis 260 Tonebeam Type 2 [above 8.422.101] - Atwater Kent Mfg. Co.;

• Shape
• Chassis only or for «building in»

• Notes
• Tonebeam is the neon tuning indicator tube.

• Literature/Schematics (1)
• Rider's Perpetual, Volume 3 = 1933 and before (p.3-157)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 507 models, 330 with images and 332 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Atwater Kent Mfg. Co.; Philadelphia, USA
