• Country
• Hungary

• Manufacturer / Brand
• Audio Kino és Hangtechnikai Vállalat, Budapest

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155741

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECH42 EAF42 6AU6 6AU6 ECC40 6L6 6L6 AZ4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 50 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

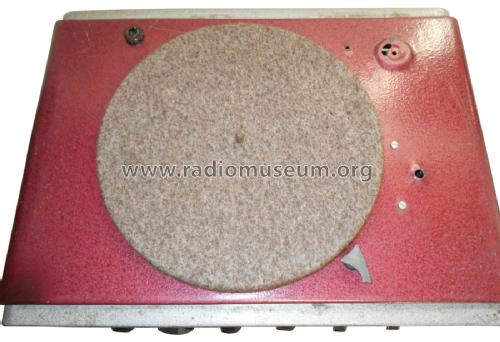

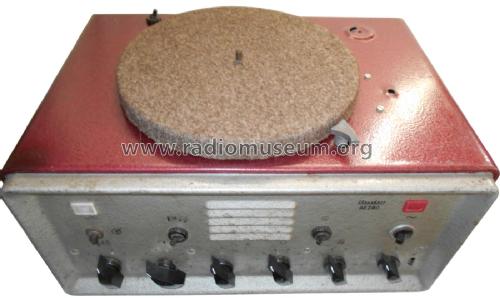

• Model: Audio Amplifier AE 280 - Audio Kino és Hangtechnikai

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 310 x 200 x 400 mm / 12.2 x 7.9 x 15.7 inch

• Notes

• Cinema amplifier, with radio and turntable DL782, speeds: 16, 33, 45, 78 rpm.

  U_out: 100 V (for speaker).

• Net weight (2.2 lb = 1 kg)
• 22 kg / 48 lb 7.3 oz (48.458 lb)

• Literature/Schematics (1)
• Csabai Dániel, Hangerösítö Kapcsolások, Bp. 1976.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
