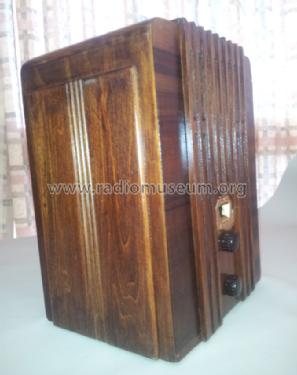

34C5 AC-DC
Audiola Radio Co.; Chicago, Illinois
- Country
- United States of America (USA)
- Manufacturer / Brand
- Audiola Radio Co.; Chicago, Illinois
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33495
-
- Brand: Audiodyne
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 34C5 AC-DC - Audiola Radio Co.; Chicago,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 340 x 265 x 205 mm / 13.4 x 10.4 x 8.1 inch
- Net weight (2.2 lb = 1 kg)
- 5.6 kg / 12 lb 5.4 oz (12.335 lb)
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Literature/Schematics (2)
- Machine Age to Jet Age II
