• Country
• Germany

• Manufacturer / Brand
• Lehnert GmbH, (Poppy); Saarbrücken

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122980

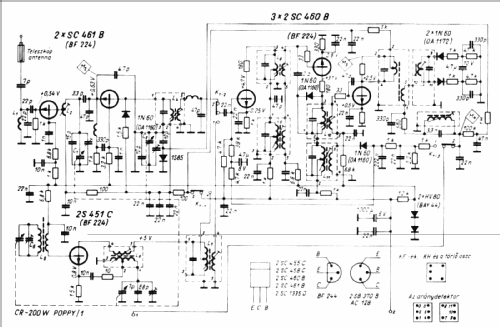

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / C: 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassetten-Recorder mit MW / UKW Radio Poppy CR-200W [CCIR] - Lehnert GmbH, Poppy;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 250 x 75 mm / 11 x 9.8 x 3 inch

• Notes

• Deutsch beschriftet. All captions in German, even the rear label.
  Kadar states Japan as country of origin. That may be for the production, but the Brand originates in Netherlands.
  Loudspeaker 100×50 mm oval, 8 ohm.

  Siehe auch Audio Sonic Poppy CR-200W mit OIRT-FM-Band.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Literature/Schematics (1)
• Radio es Televizio Vevö keszülekek 1972-75

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
