• Country
• United States of America (USA)

• Manufacturer / Brand
• Audiotronics Corporation (AC); North Hollywood

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 236221

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

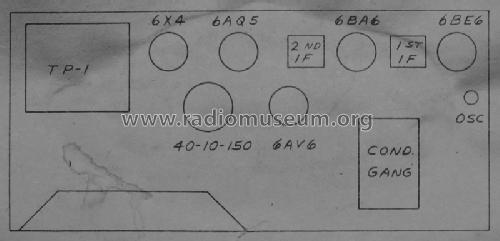

• 6BE6 6BA6 6AV6 6AB5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

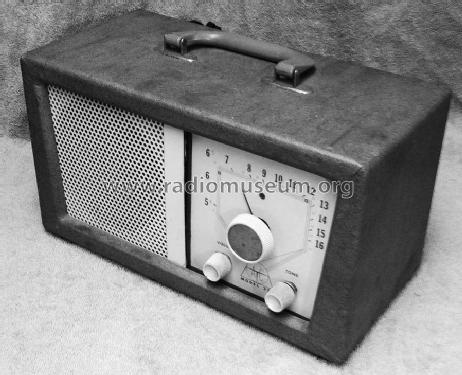

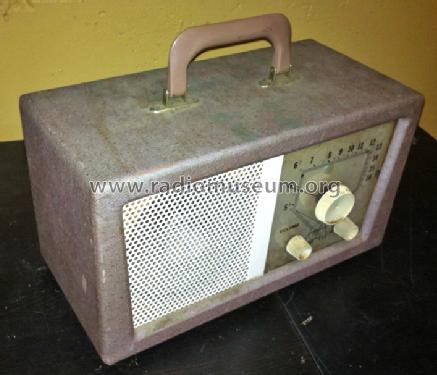

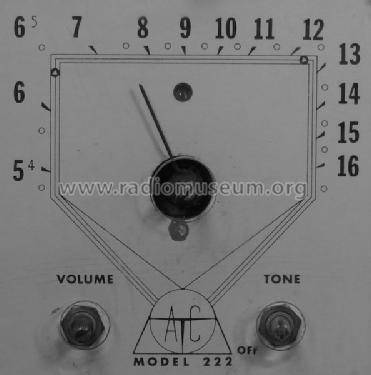

• Model: 222 - Audiotronics Corporation AC;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13 x 7.75 x 6.5 inch / 330 x 197 x 165 mm

• Notes

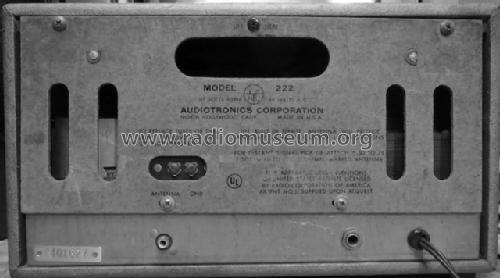

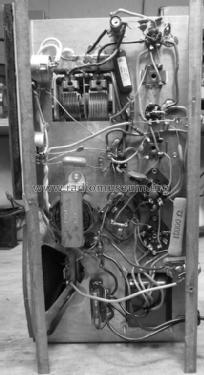

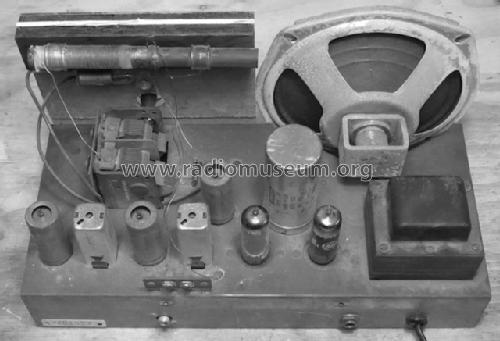

• The radio covers 530-1650 kHz.  The manufacturers name and address and also a schematic are attached to the inside bottom of the case.  The rear of the chassis has a 1/4 inch headphone jack and an RCA audio input jack.

• Net weight (2.2 lb = 1 kg)
• 9 lb 0 oz (9 lb) / 4.086 kg

• Literature/Schematics (1)

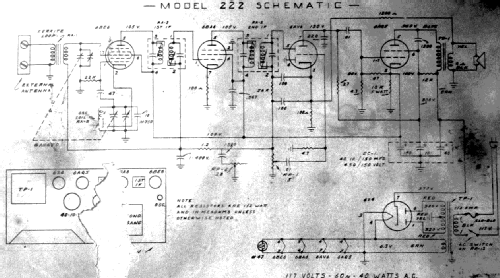

• Schematic diagram pasted to inside botton of case.

• Author
• Model page created by Robert Uhrhammer. See "Data change" for further contributors.
