Cassette Tape Recorder 162

Audiotronics Corporation (AC); North Hollywood

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 270935

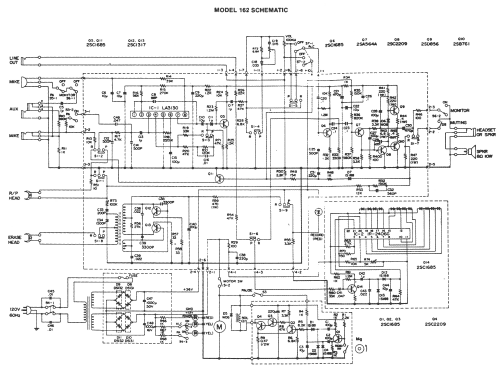

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 50/60Hz 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Tape Recorder 162 - Audiotronics Corporation AC;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 35.6 x 165 x 254 mm / 1.4 x 6.5 x 10 inch
  • Notes

  • Audiotronics Cassette Tape Recorder Model 162.
    Frequency Response 40 - 10000Hz +/-3dB
    External Mic Input
    Line Out

  • Net weight (2.2 lb = 1 kg)
  • 5.670 kg / 12 lb 7.8 oz (12.489 lb)
  • Mentioned in

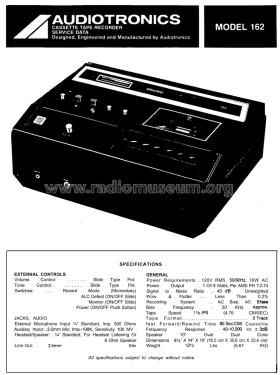

  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
