• Country
• Italy

• Manufacturer / Brand
• Augusta Costruzioni Radioelettriche; Rovereto

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232661

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UAF41 UAF41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 - 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

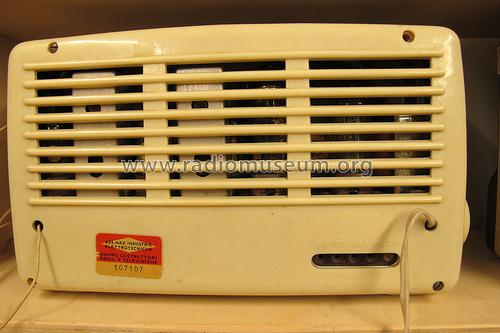

• Model: 520 - Augusta Costruzioni

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 260 x 150 x 100 mm / 10.2 x 5.9 x 3.9 inch

• Author
• Model page created by Maurizio Nicolussi. See "Data change" for further contributors.

• Other Models

• Here you find 57 models, 33 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
