• Country
• Belgium

• Manufacturer / Brand
• Aurièma Radio Corporation; Bruxelles

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137027

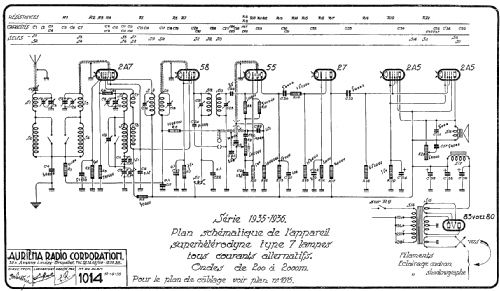

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 2A7 58 55 27 2A5 2A5 83-V or 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Superheterodyne [7 Lampes] - Aurièma Radio Corporation;

• Notes

• Ondes de 200 à 2000 m. Avec shadowgraphe.

• Source of data
• -- Schematic

• Author
• Model page created by Rudy Vande Loo. See "Data change" for further contributors.

• Other Models

• Here you find 11 models, 9 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Aurièma Radio Corporation; Bruxelles
