- Country
- United States of America (USA)
- Manufacturer / Brand
- Austin Radio Mfg. Corp. Ltd.; Los Angeles, CA
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33560

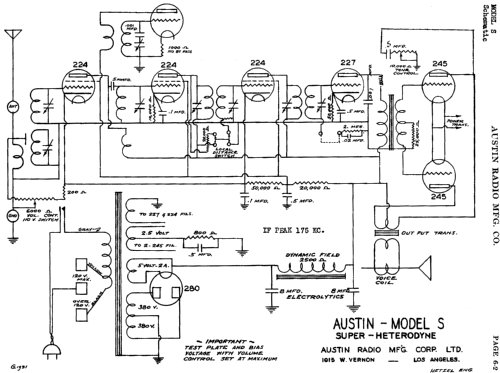

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: S - Austin Radio Mfg. Corp. Ltd.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17.5 x 10 x 7.5 inch / 445 x 254 x 191 mm
- Notes
- Push-pull af output stage.
- Net weight (2.2 lb = 1 kg)
- 17 lb (17 lb 0 oz) / 7.718 kg
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Other Models
-
Here you find 5 models, 3 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Austin Radio Mfg. Corp. Ltd.; Los Angeles, CA
