- Country
- Australia
- Manufacturer / Brand
- Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
- Year
- 1951–1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191767
-
- alternative name: General Electric Company of Australia Ltd.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 0.2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

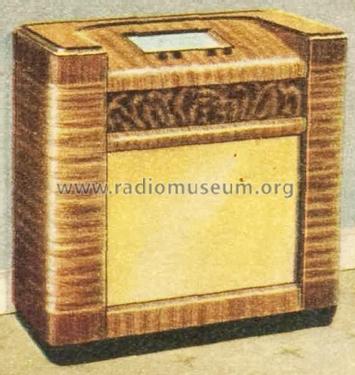

- Model: Hotpoint K3 K35DM [K35DV4] - Australian General Electric GE
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
This model uses a type 19190 synchronous vibrator power unit.
Also available in dry battery, 4 volt accumulator & 6 volt vibrator models, K35DA, K35DB & K35DV6.
See also 4 volt vibrator version of AWA Radiola model 731C.
- Price in first year of sale
- 74.45 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. X
- Literature/Schematics (1)
- Australian Official Radio Service Manual AORSM (Volume 10, 1952, Page 160.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
