- Country
- Australia
- Manufacturer / Brand
- Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191773
-
- alternative name: General Electric Company of Australia Ltd.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 90 & 1.5 & 3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

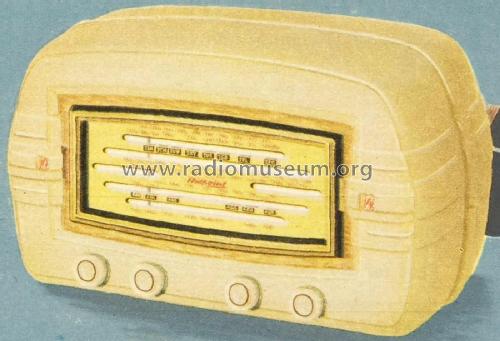

- Model: Hotpoint M6 M64MM [M64MA] - Australian General Electric GE
- Shape
- Tablemodel, with any shape - general.
- Notes
-
It uses the same chassis as the 1.5 volt dry battery version of AWA Radiola model 433MC
An additional 3 volt battery is used for the dial lights.
Price is for Walnut & Burgundy only. Ivory extra at £25/13/5.
See also 4 & 6 volt vibrator versions, models M64MV4 & M64MV6
- Price in first year of sale
- 25.20 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. X
- Literature/Schematics (1)
- Australian Official Radio Service Manual AORSM (Volume 10, 1952, Page 166.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
- Other Models
-
Here you find 364 models, 141 with images and 86 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
