• Year
  • 2010 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 355499

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 100 - 120 or 220 - 250 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org

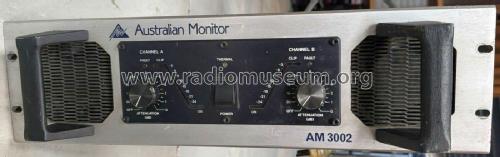

  • Model: Australian Monitor AM3002 - Australian Monitor Brand,
  • Shape
  • Boatanchor (heavy military or commercial set >20 kg).
  • Dimensions (WHD)
  • 482 x 133 x 525 mm / 19 x 5.2 x 20.7 inch
  • Notes
  • The Australian Monitor AM3002 stands alone on the world stage of high-level professional power amplifiers. It delivers a class-leading combination of high output power, sonic purity, and a completely reliable platform.

    Power Output

    Per Channel
    650 watts @ 8 ohms
    1000 watts @ 4 ohms
    1600 watts @ 2 ohms
    Bridge Mode
    2175 watts @ 8 ohms
    3250 watts @ 8 ohms

    Specifications:

    Frequency Response: 20 Hz-20 kHz +- 0.25 dB
    Damping Factor: >400:1
    Output Impedance: <20 milli ohm
    Input Impedance: 25k ohms
    Input Sensitivity: 1.14 volts +- 3 dB
    Signal To Noise (A-weighted): 106 dB
    Crosstalk @ 1 kHz: better than 90 dB
    Distortion @ 0.5 dB below clipping re 4 ohms: THD <0.005%@1 kHz 4 ohms
    AC Power, at idle: 500 W
    AC Power, full power 4 ohms: 3,700 W



  • Net weight (2.2 lb = 1 kg)
  • 32 kg / 70 lb 7.8 oz (70.485 lb)
  • Mentioned in
  • - - Manufacturers Literature (AM3002 Brochure)
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
