- Country
- United States of America (USA)
- Manufacturer / Brand
- Autocrat Radio Co.; Chicago (IL)
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 207386
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 5-DB - Autocrat Radio Co.; Chicago IL
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 18 x 31 x 8.5 inch / 457 x 787 x 216 mm
- Notes
-
DC model.
- Net weight (2.2 lb = 1 kg)
- 20 lb 0 oz (20 lb) / 9.080 kg
- Price in first year of sale
- 29.95 $
- Source of data
- Pre-War Consoles
- Literature/Schematics (3)

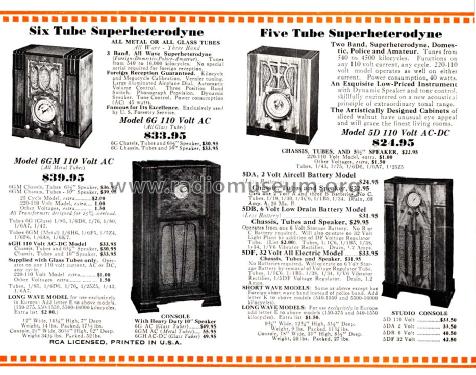

- Autocrat Radio Co. - Folder for 1936.
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
