- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Autocrat Radio Ltd.; Auckland
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 154998
NZVRS (with permission).
Pic. just as type proof!
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 50Hz, 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

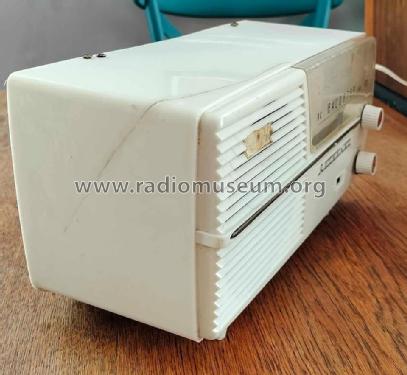

- Model: 314 - Autocrat Radio Ltd.; Auckland
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Autocrat 314;
Blue colored, 30 W power consumption.4-valve plus silicone rectifier.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
