- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Autocrat Radio Ltd.; Auckland
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 351131

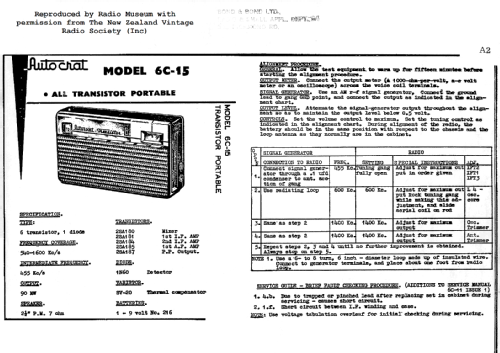

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / No.216: 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Power out
- 0.09 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 6C15 - Autocrat Radio Ltd.; Auckland
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 4.625 x 2.75 x 1.25 inch / 117 x 70 x 32 mm
- Notes
-
AUTOCRAT 6CI5
The only pocket-size radio with 2½" speaker. 4⅝" x 2¾' x 1¼". Weighs The 11 oz. Six transistor. £22/10/0
- Net weight (2.2 lb = 1 kg)
- 0 lb 11 oz (0.688 lb) / 0.312 kg
- Price in first year of sale
- 22.50 NZ £
- Mentioned in
- -- Original prospect or advert (Press 1 September 1960 Page 19)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
