• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Autocrat Radio Ltd.; Auckland

• Year
• 1965–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351264

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SA222 2SA222 2SA322 2SA203 2SB185 2SB185 2SB185 2SB185 2SB22 2SB22

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 4 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / D: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Power out
• 0.3 W (0.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Autocrat Sanyo 10 Transistor 10U-602 - Autocrat Radio Ltd.; Auckland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9.25 x 6 x 2.75 inch / 235 x 152 x 70 mm

• Notes

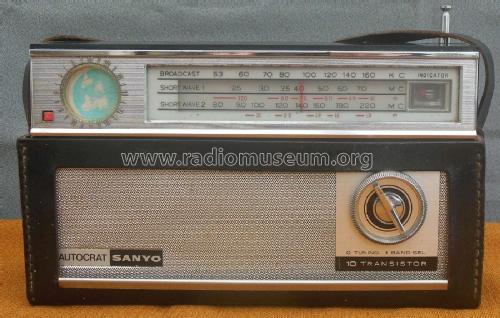

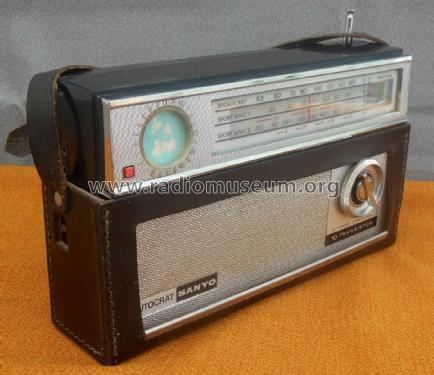

• 10 transistor triple-wave personal portable, built-in antenna with telescopic and supplementary antennas, earphone jack, tuning meter, push-button dial light.

  See also Sanyo 10U-602.

• Net weight (2.2 lb = 1 kg)
• 2.1 lb (2 lb 1.6 oz) / 0.953 kg

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
