Autocrat Sanyo Portable Radio Phono G1110

Autocrat Radio Ltd.; Auckland

Data
Forum
Pictures
Collections

  • Year
  • 1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 351293

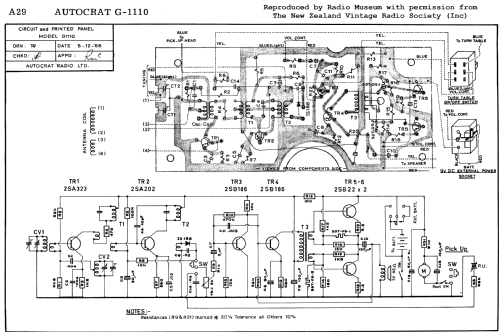

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.45 W (0.75 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Autocrat Sanyo Portable Radio Phono G1110 - Autocrat Radio Ltd.; Auckland
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Autocrat Sanyo G1110 All Transistor Portable Radio Phono with 2-speed record player. £29/19/6.

    See also the Japanese model Sanyo G1110.

  • Price in first year of sale
  • 29.98 NZ £
  • Mentioned in
  • -- Original prospect or advert (Press 8 December 1966 Page 18)
  • Literature/Schematics (1)
  • -- Original prospect or advert (Press 8 December 1966 Page 19)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
