• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Autocrat Radio Ltd.; Auckland

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351378

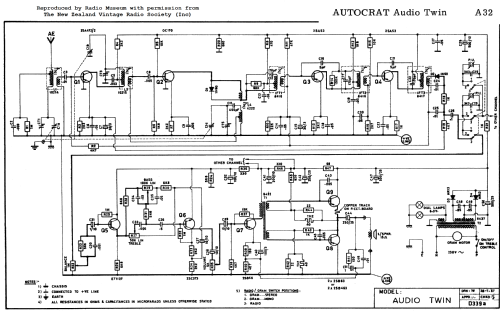

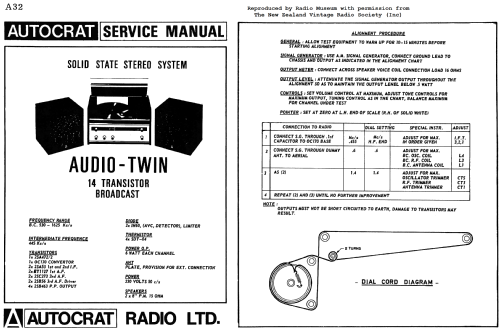

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• 2SA472 OC170 2SA53 2SA53 unknown_tr unknown_tr 2SC373 2SC373 2SB56 2SB56 2SB463 2SB463 2SB463 2SB463 1N60 1N60

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 8 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 inch = 20.3 cm

• Power out
• 12 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Solid State Stereo System Audio Twin - Autocrat Radio Ltd.; Auckland

• Shape
• Book-shelf unit.

• Notes

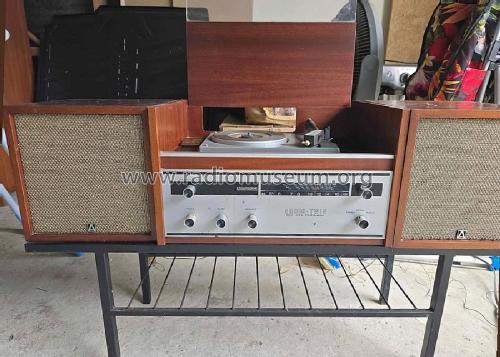

• Autocrat Audio Twin Solid State Stereo System with 530 - 1625 kHz broadcast band, record player, and 2 x 8" speakers.
