- Country
- Canada
- Manufacturer / Brand
- Automatic Radio of Canada Ltd.; Toronto
- Year
- 1955 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 303593

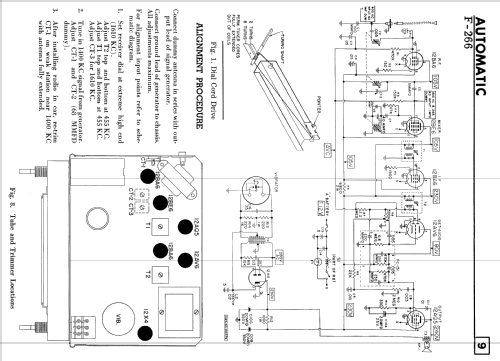

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Metal case
- from Radiomuseum.org
- Model: F-266 - Automatic Radio of Canada Ltd.
- Shape
- Chassis only or for «building in»
- Notes
-
The Automatic model F-266 is a 6-tube car radio for 12V positive or negative ground automobiles. Has vibrator type B+ supply.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1956-57 Supplement 39)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
