- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1951 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 33793

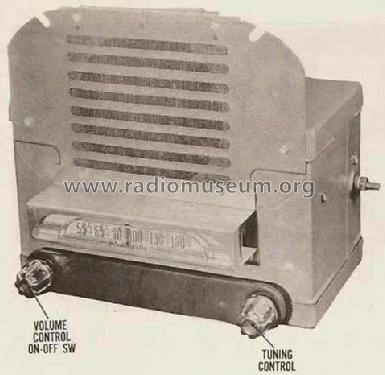

Picture from service manual.
Sams photofact set 148 folder 4 date 10-51.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: C-351 - Automatic Radio Mfg. Co.;
- Shape
- Chassis only or for «building in»
- Notes
-
The Automatic Radio C-351 is for car models 1951 from Chevrolet and has a vibrator V-83 for +Ub.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 22, covering 1951
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 148, folder 4, datet 10-51)
