- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33798

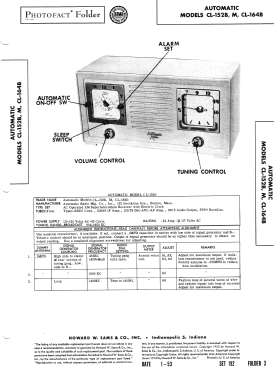

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: CL-152M - Automatic Radio Mfg. Co.;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
Color=Mahogany
Capacitor values for the original 1655-16 IF transformers are 110pF on the plate winding and 91pF on the grid winding.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 23 (last), covering up to 1954
