- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150797
Sams photofact.

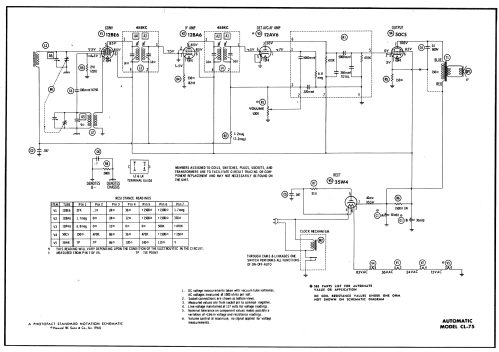

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: CL-75 - Automatic Radio Mfg. Co.;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
- AC operated AM receiver with electric clock.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 492 folder 5 date 7-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
