- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1959 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 146355
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: CTR-6B - Automatic Radio Mfg. Co.;
- Shape
- Chassis only or for «building in»
- Notes

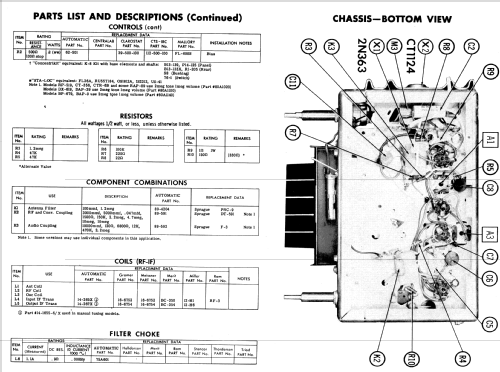

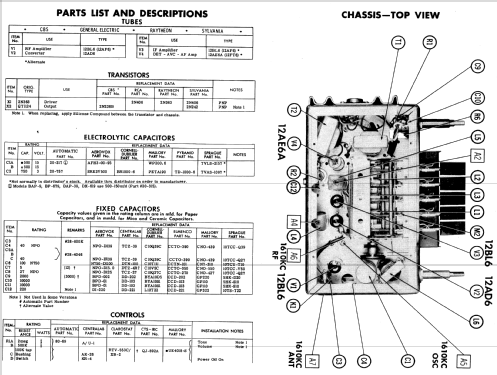

- Sams photofact set 489 folder 5 date 6-60 features the Automatic Radio models BAP-9, BP-679 (for 1959 Buick), CT-356, CTR-6B (for 1955/56 Chevrolet), DAP-39, DX619 (for 1959 Dodge), RAP-89 and RP519 (for 1959 Rambler) as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 489 folder 5 date 6-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
