• Country
• United States of America (USA)

• Manufacturer / Brand
• Automatic Radio Mfg. Co.; Boston (MA)

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 170172

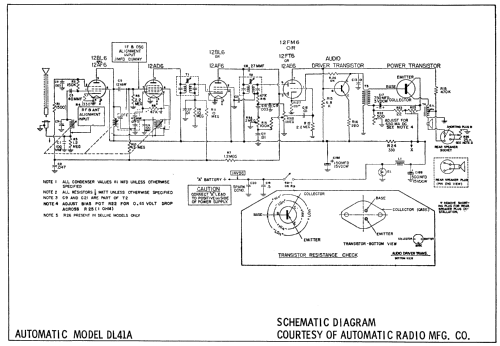

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12BL6 or 12AF6 12AD6 12BL6 or 12AF6 12FM6 or 12FT6 unknown_Tube unknown_Tube

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superhet with RF-stage; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 14 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: DL41A - Automatic Radio Mfg. Co.;

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-63, Set 669, Servicer)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 401 models, 163 with images and 321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Automatic Radio Mfg. Co.; Boston (MA)
