• Year
  • 1954
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 100868

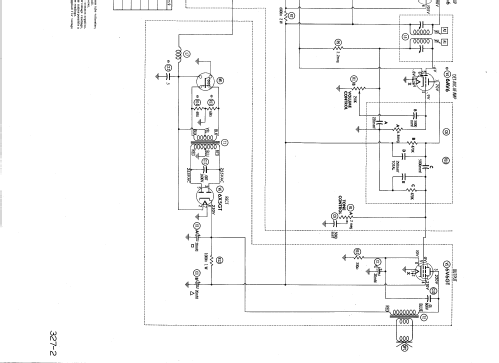

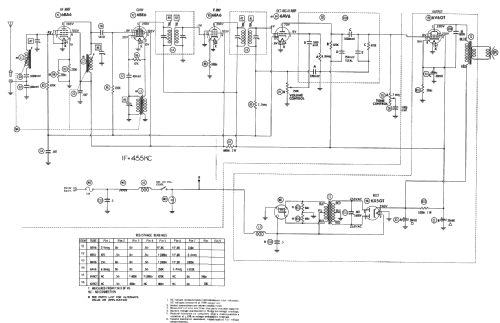

Click on the schematic thumbnail to request the schematic as a free document.

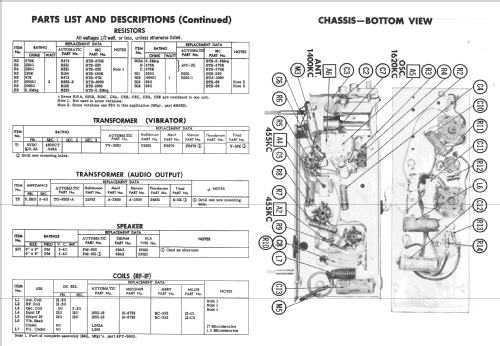

 Technical Specifications

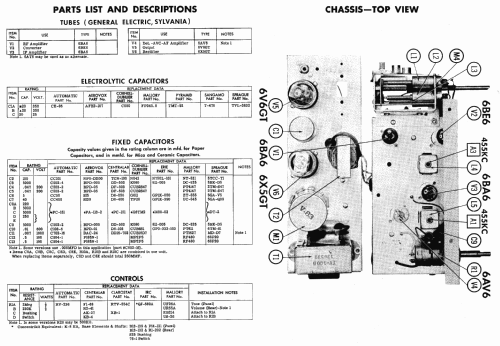

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Metal case
  • from Radiomuseum.org

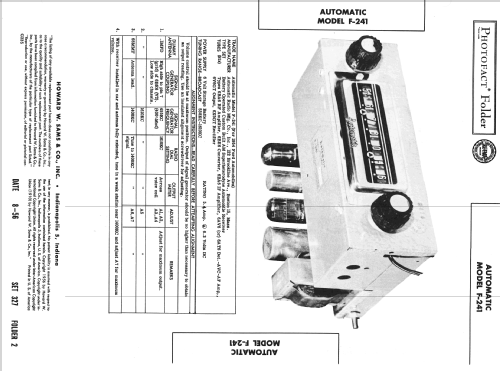

  • Model: F-241 - Automatic Radio Mfg. Co.;
  • Shape
  • Chassis only or for «building in»
  • Notes

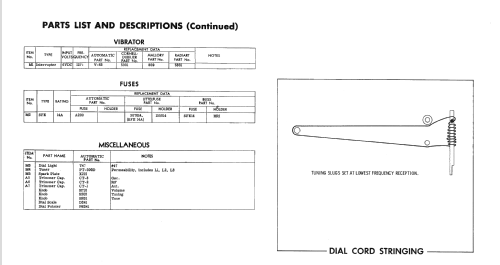

  • The Automaitc Radio model F-241 has a vibrator V-83 (Cornell-Dublier 5301 or Mallory 859). The oval speaker diameter is 6" x 9".
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
