- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1954 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 100871

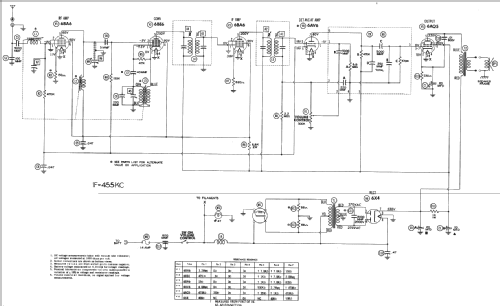

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Metal case
- from Radiomuseum.org

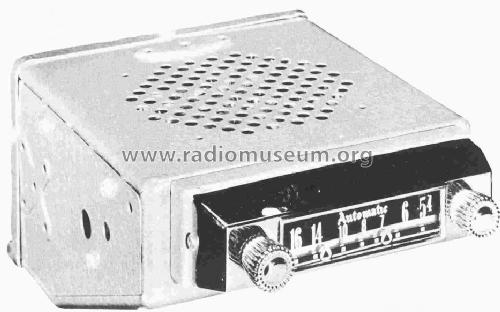

- Model: MU34 - Automatic Radio Mfg. Co.;
- Shape
- Chassis only or for «building in»
- Notes
-
Automatic Model MU34 is a Battery Operated AM superheterodyne Universal Type Automatic Automobile Receiver. Vibrator for +B .
- Literature/Schematics (1)

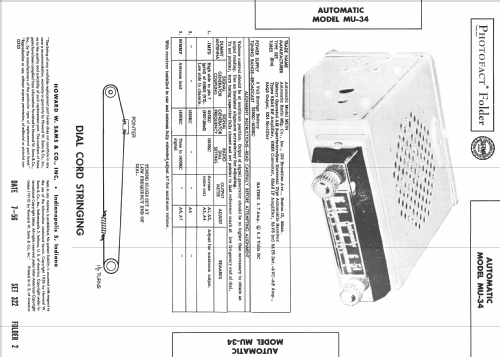

- Photofact Folder, Howard W. SAMS (Set 322 Folder 2 dated 7-56)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
