• Country
• United States of America (USA)

• Manufacturer / Brand
• Automatic Radio Mfg. Co.; Boston (MA)

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130255

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1S5 1S4

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1.5 & 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Tom Thumb Portable [late] - Automatic Radio Mfg. Co.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Built-in loop antenna.

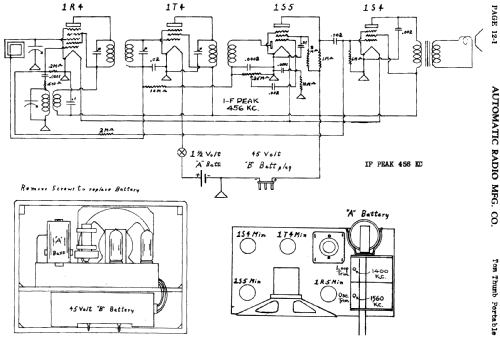

  The Rider´s page 12-1 shows a wrong tube "1R4" in the schematic. The correct tube "1R5" is shown in the chassis-drawing.

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
