Tom Thumb Steering Post
Automatic Radio Mfg. Co.; Boston (MA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 130365
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Tom Thumb Steering Post - Automatic Radio Mfg. Co.;
- Notes
-

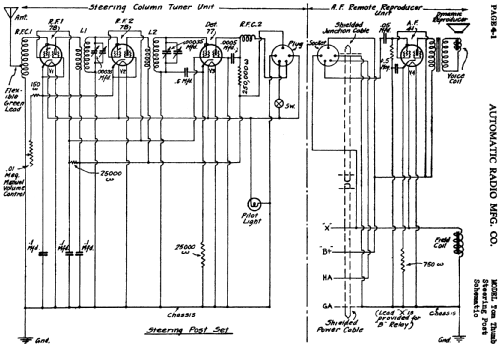

Steering column tuner unit & af remote reproducer unit. According tu the tube line up, the model is 1933 or younger.
- Circuit diagram reference
- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
