• Country
• United States of America (USA)

• Manufacturer / Brand
• Automatic Radio Mfg. Co.; Boston (MA)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33845

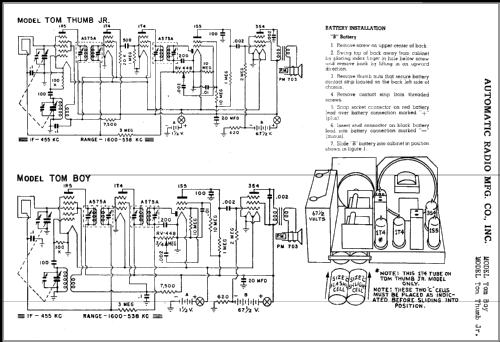

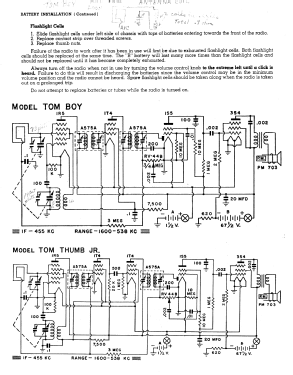

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1R5 1T4 1T4 1S5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite case

• from Radiomuseum.org

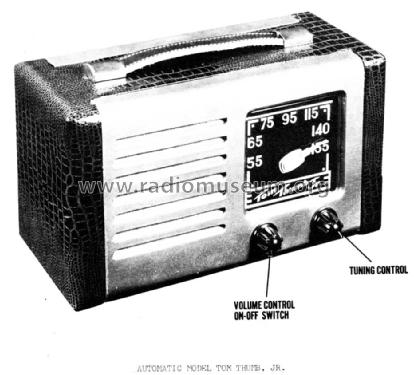

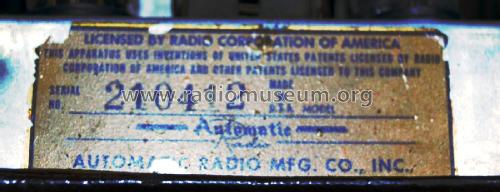

• Model: Tom Thumb Jr. - Automatic Radio Mfg. Co.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Color=Deco-black with chrome trim.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (7th Edition)

• Circuit diagram reference

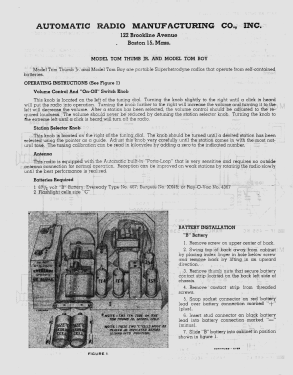

• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)

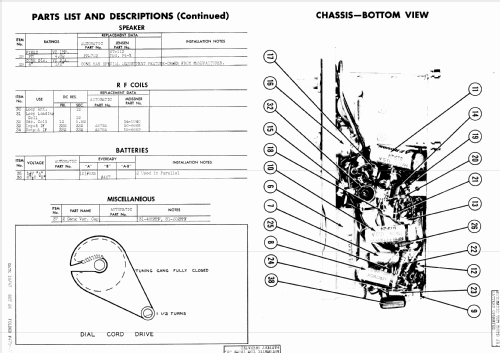

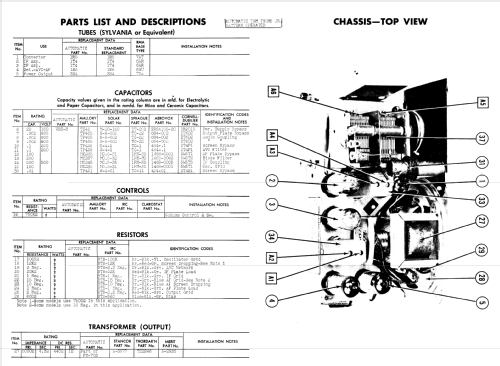

• Photofact Folder, Howard W. SAMS (Set 26, Folder 4716-7)
